こんちわ.

Arduinoでセンサの値を取得はできてたのですが、

グラフ化のやり方が良くわからなかったので

英語をよく読みました(最初からこれをしていれば・・・.)


必須・・・Processing

はいはい、こっからダウンロードしてくださいね

http://processing.org/

上側のDownload で自分の機体にあったのを落としてください.

--
【センサの値をグラフ化】
さーて、

Arduino IDEにあったGraph

サンプルの英語をよく読みましょう

Processing使えって書いてますね.


------------Arduino部分--------
void setup() {
  // initialize the serial communication:
  Serial.begin(9600);
}

void loop() {
  // send the value of analog input 0:
  Serial.println(analogRead(0));
  // wait a bit for the analog-to-digital converter
  // to stabilize after the last reading:
  delay(10);
}

---Arduino部分終了---------

/* Processing code for this example
って書いてある処から

「*/」ってところまでがProcessingのコードです.

※C言語は/* */で囲えばコメントになります.

僕なりに日本語を下記足してみました.

---------Processing---------
import processing.serial.*;

 Serial myPort;        //とりあえず宣言してっください.
 int xPos = 1;         // horizontal position of the graph

 void setup () {
 // 画面の大きさ、小さいと観づらいです.
 size(760, 480);
 //繋がってるポートをリスト化、
 println(Serial.list());
//Arduinoが繋がってるポートを下の[この中]に入れましょう.
 myPort = new Serial(this, Serial.list()[1], 9600);
 // don't generate a serialEvent() unless you get a newline character:
 myPort.bufferUntil('\n');
 // いろあい?0が黒255が白.ただし一回しか表示されない.あとは黒
 background(0);
 }
 void draw () {
 // everything happens in the serialEvent()
 }

 void serialEvent (Serial myPort) {
 // get the ASCII string:
 String inString = myPort.readStringUntil('\n');

 if (inString != null) {
 // trim off any whitespace:
 inString = trim(inString);
 // convert to an int and map to the screen height:
 float inByte = float(inString);
 inByte = map(inByte, 0, 1023, 0, height);

 // draw the line:
 stroke(127,34,255);
 line(xPos, height, xPos, height - inByte);

 // at the edge of the screen, go back to the beginning:
 if (xPos >= width) {
 xPos = 0;
 background(0);
 }
 else {
 // increment the horizontal position:
 xPos++;
 }
 }
 }
 --------------Processing終わり--------
これをまんま書き込めばいいです.

プログラムおいておきますね.

Processingプログラム ←クリックして先でダウンロード

【実際の表示状態】
Arduinoの方は、サンプルスケッチのGraphを利用してください.

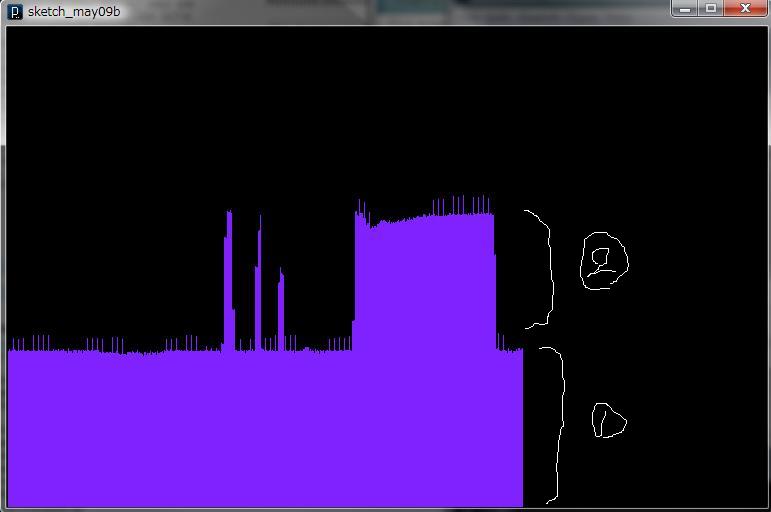

これが出力されます

①は削って

②だけが欲しいところですね.

--
【おまけ補足】
Processingで下の画面に表示されるリストは、どのCOMポートが使われているか示すものです.

確認した方がいいですよ.
